Gaint loader wheels and dumper truck wheel for Mining use

Detail Information

Categories  : Mining Wheels

Album  : View larger image

Brand  : ATLAPEX

Model  : Mining Wheels

Application  : Mining use

Quality  : Premium

Terms of Payment  : L/C, T/T, Paypal

Update Time  : 2021-03-03



Features:

To offer best performance during rough working situation, forged material is used for the most  critical components, and most parts are fully machined. We use Lincoln© welding equipment and non-destructive inspection to prevent weld defects.

Applications

Dump truck,LHD, Wheel Loader&Dozer and other special purpose wheeled vehicles of the mining industry.

gaint loader wheels and dumper truck wheel for Mining use

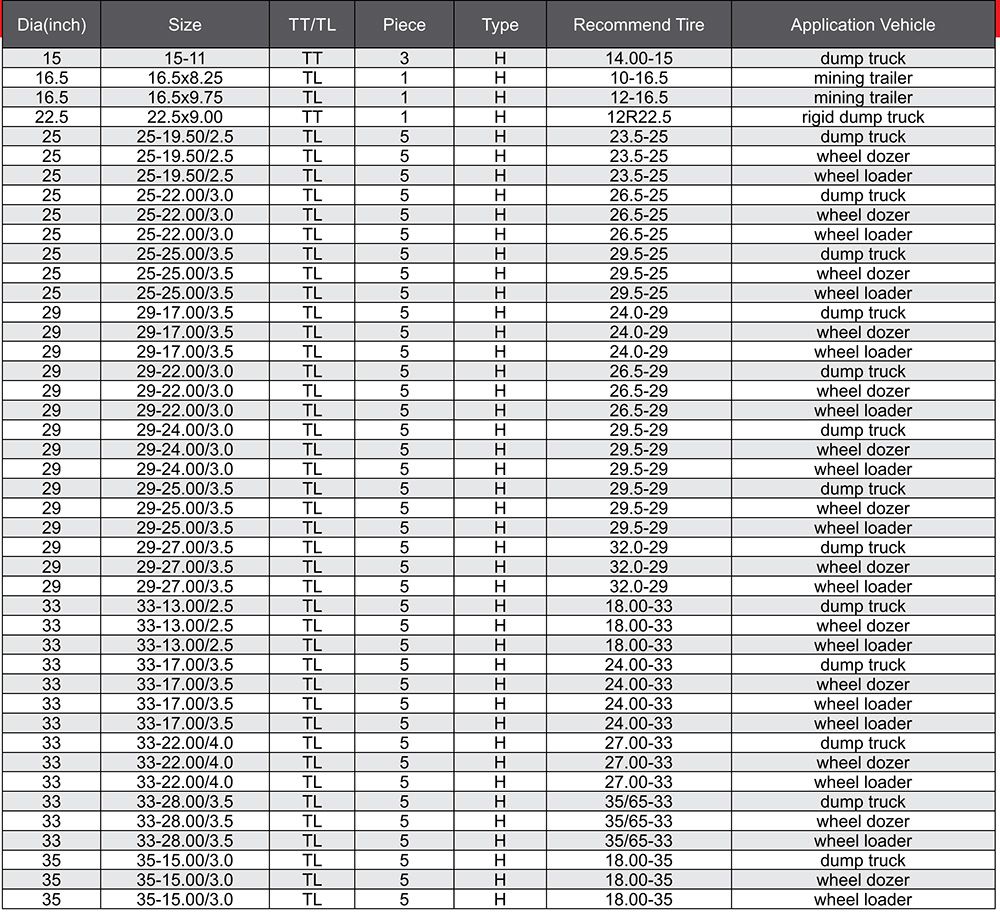

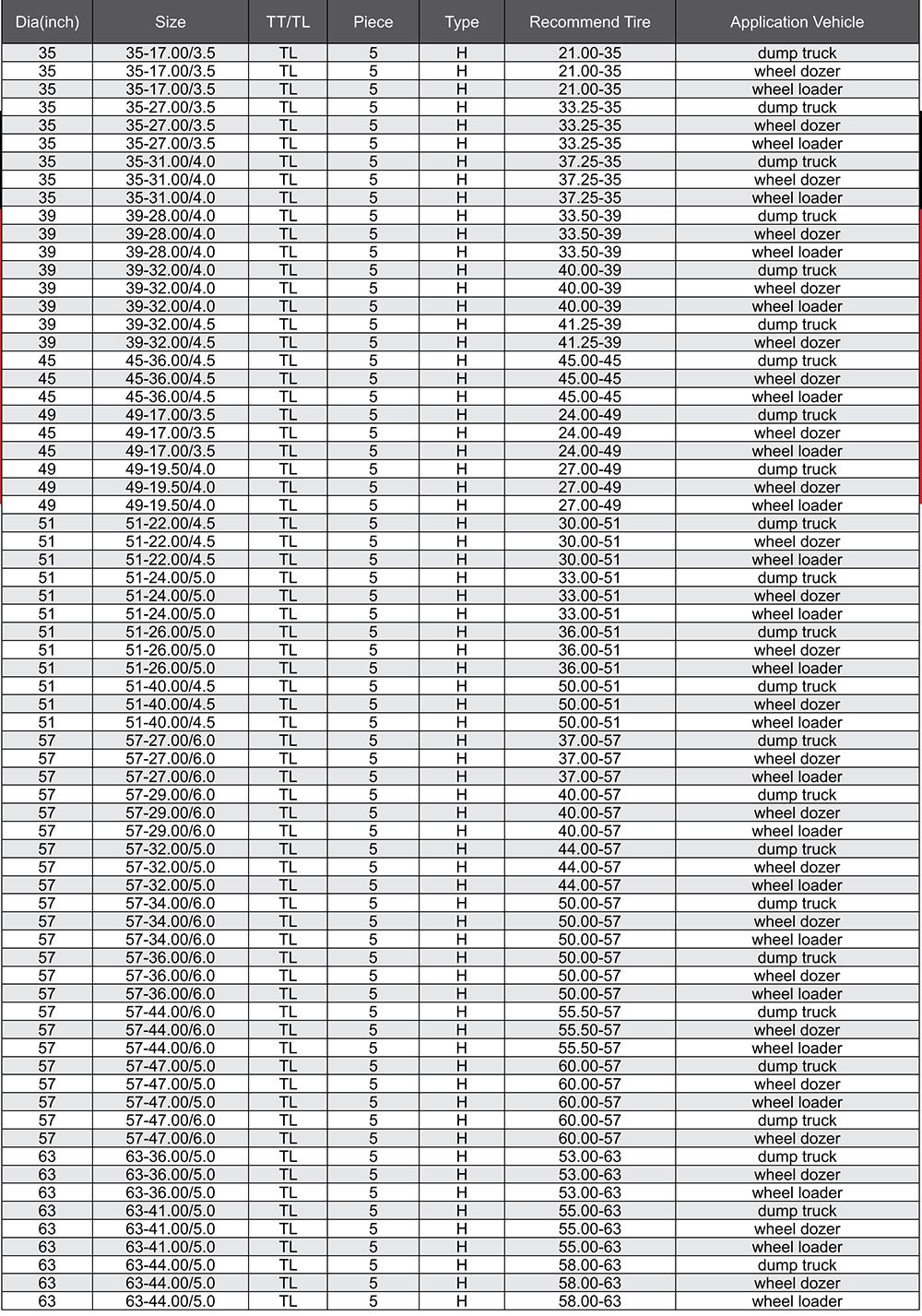

Multi-pieces OTR wheel 15'' ~ 63'', rim components lock ring, side ring/flange, bead seat band etc are also available.


20": 20-7.50/1.7, 20-80/1.7, 20-8.5/1.7, 20-9.00/1.7, 20-10.00/1.7, 20-10.00/1.88, 20-10.00/2.0, 20-11.00/1.7, 20-12.00/2.0, 20-13.00/1.7, 20-13.00/2.0, 20-14.00/2.0, 20-15.00/1.7, 20-15.00/2.0, 20xW14

21": 21-11.25/2.0, 21-18.00/1.5, 21-17.00/2.0, 21-18.00-2.0

22": 22-17.00/2.0

23": 23-11.00/1.5, 23-18.00/2.0

24": 24-8.00/1.7, 24-8.50/1.7, 24-10.00/1.7, 24-10.00/2.0, 24-11.25/2.0, 24-12.00/1.7, 24-13.00/1.7, 24-10.00/1.8, 24xW15, 24xW16

25": 25-8.5/1.5, 25-9.5/1.5, 25-8.50/1.3, 25-9.50/1.7, 25-10.00/1.5, 25-11.00/1.5, 25-14.00/1.5, 25-11.00/1.7, 25-11.25/2.0, 25-11.00/1.7, 25-11.25/2.0, 25-13.00/2.5, 25-14.00/2.0, 24-15.00/3.0, 25-17.00/2.0, 25-19.5/2.0, 25-19.5/2.5, 25-22.00/1.84, 25-22.00/3.0, 25-25.00/3.5, 25-36.00/1.5, 25x12.00DC, 25x13.00DC

26": 26-20.00/1.1

27": 27-23.5/2.5

29": 29-17.00/3.5, 29-22.00/3.0, 29-24.00/3.5, 29-25.00/3.5, 29-27.00/3.5

33": 33-13.00/2.5, 33-28.00/3.5

34": 34-14.00/1.3, 34-16.00/1.5

35": 35-15.00/3.0, 35-17...00/3.5,

49": 49-17.00/3.5, 49-19.5/4.0,

51": 51-22.00/4.5, 51-24.00/5.0, 51-26.00/5.0, 51-40.00/4.5

57": 57-27.00/6.0, 57-29.00/6.0, 57-32.00/5.0, 57-32.00/6.0, 57-36.00/6.0, 57-44.00/5.0, 57-44.00/6.0, 54-47.00/5.0, 54-47.00/6.0

63": 63-41.00/5.0, 63-44.00/5.0



Steel OTR Wheel Rim Range:

1, Light Duty 3 piece wheel rims: 24-10.00/1.7, 25-12.00/1.3, 25-14.00/1.5, 25-17.00/1.7;

2, Medium Duty large wheel rims: 39-32.00/4.5, 45-36.00/4.5, 49-17.00/3.5, 49-19.50/4.0;

3, Medium Duty 3 piece wheel rims:

     20" series: 20-8.5/1.7, 20--10.00/1.7, 20-11.25/1.7, 20-13.00/1.0, 20-8.0/2.0;

     21" series: 21-17.00/2.0, 21-18.00/1.7;

     22" series: 22-17.00/2.0;

     23' series: 23-11.00/2.0, 23-18.00/2.0;

     24" series: 24-8.5/1.7, 24-10.00/1.7, 24-11.25/2.0;

     25" series: 25-8.5/1.5, 25-10.00/1.5, 25-12.00/1.3, 25-14.00/1.5, 25-17.00/1.7, 25-17.00/2.0, etc;

     26" series : 26-20.00/1.1;

4, Medium Duty 5 piece wheel rims:

     25" series: 25-10.00/1.5, 25-11.25/2.0,  25-13.00/2.5, 25-14.00/1.5, 25-17.00/2.0, 25-19.50/2.5, etc;

5, Heavy duty Split: 21-11.25/2.0, 21-17.00/2.0, 25-11.00/1.5, 25-19.50/2.5;

6, Heavy duty 3 piece wheel rims:

     15" series: 15-11.5/1.5

     20" series: 20-8.5/1.7, 20--10.00/1.7;

     24" series: 24-8.5/1.7, 24-10.00/1.7, 24-8.5/2.0, 24-10.00/2.0;

     25" series: 25-11.25/2.0

7, Heavy duty 5 piece wheel rims :

     25" series: 25-11.25/2.0, 25-13.00/2.5, 25-15.00/3.0, 25-17.00/2.0, 25-19.00/2.5, etc;

     29" series: 29-24.00/3.0, 29-25.00/3.5, 29-27.00/3.5;

     33" series: 33-13.00/2.5, 33-28.00/3.5;

     35" series: 35-15.00/3.0, 35-17.00/3.5;

8, Heavy duty Large

     51" series: 51-22.00/4.5, 51-24.00/5.0, 51-26.00/5.0, 51-40.00/4.5;

     57" series: 57-27.00/6.0, 57-29.00/6.0, 57-32.00/5.0, 57-32.00/6.0, 57-36.00/6.0, etc;

     63" series: 63-41.00/5.0, 63-44.00/5.0.

By Application:

Port Machine Wheels:

    24" serise: 24-8.5/1.7, 24-10.00/1.7, 24-10.00/2.0

    25" serise: 25-11.25/2.0, 25-13.00/2.5, 25-15.00/3.0

    33" seriese: 33-13.00/2.5

    35" seriese: 35-15.00/3.0

    49" seriese: 49-19.50/4.0

Large Mining Wheels:

    45" serise: 45-36.00/4.5(Komatus WA800)

    49" serise: 49-17.00/3.5(CAT777),  49-19.50/4.0(Komatus 785-7)

    51" serise: 51-24.00/5.0(CAT785), 51-26.00/5.0(SGE170)

    57" serise: 57-27.00/6.0(Terex MT3700), 57-29.00/6.0(CAT789), 57-32.00/6.0(CAT793)



    63"  serise: 63-44.00/5.0(CAT797)



Quality Control:

Profile Section Parts:

    1. Rolling Section, high strength and reliable quality

    2. The material for gutter section, back section, bead seat band and flanges are made from Q345D

    3. The material of locking is made from 50Mn

The Process

    1. All parts such as the gutter section, back section, center bands, beat seat bands and flanges are machined by the state of art  CNC machines.

    2. All of the weld beads must be inspected by ultrasonic dection, the magnetic and X-ray will be used in the key weld bead if they are required

    3. Each wheel must be cleaned by sandblasting before it is hanged on the painting line. All of the wheels are painted with expoxy resin electrophoretic primer or base coat, a topcoat( power and wet) and painted to OEM specification
