Agricultural Radial Tires R-1W(Radial)

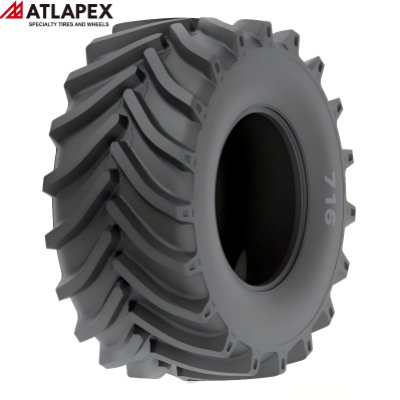

ATLAPEX AGR Tire with Pattern 716 R-1W: Advanced IF Tire with Wider Section & Ultra-Long Traction Lugs

ATLAPEX AGR Tire with Pattern 716 R-1W: Advanced IF Tire with Wider Section & Ultra-Long Traction Lugs (1)
ATLAPEX AGR Tire with Pattern 716 R-1W: Advanced IF Tire with Wider Section & Ultra-Long Traction Lugs (1)
Categories Agricultural Radial Tires R-1W(Radial)
Brand ATLAPEX
Model 280/80R20, 340/80R20, 400/70R20, 400/70R20, 425/75R20, 540/65R24, VF750/65R26, VF620/75R26 CFO, 600/65R28, 380/85R30 (14.9R30), IF600/70R30, IF900/60R32 CFO, VF1050/50R32 CFO, 420/85R34 (16.9R34), IF380/85R34, IF580/80R34, 520/85R38, VF650/85R38, 710/70R3
Application tractor, harvester and sprayer
Quality Premium
Download DOC
Update Time 2026-04-09
Contact Now Inquire Now

Detail Information

Modern precision farming demands tires that deliver exceptional stability, traction, durability and soil protection. ATLAPEX proudly introduces the Pneumatic Radial Tire 716 R-1W Pattern including 280/80R20, 340/80R20, 400/70R20, 400/70R20, 425/75R20, 540/65R24, VF750/65R26, VF620/75R26 CFO, 600/65R28, 380/85R30 (14.9R30), IF600/70R30, IF900/60R32 CFO, VF1050/50R32 CFO, 420/85R34 (16.9R34), IF380/85R34, IF580/80R34, 520/85R38, VF650/85R38, 710/70R38, IF800/70R38 CFO, IF900/60R38 CFO, 480/80R42, 520/85R42, 650/65R42, VF710/70R42, VF710/75R42, 520/85R46, IF380/95R48, 480/80R50 and IF380/90R54, specially engineered for tractors, harvesters and sprayers, combining upgraded structure and innovative technology to maximize farming efficiency.

Features:

With an extra 5% wider section, the 716 R-1W tire provides significantly better stability and traction than standard tires. The wider footprint enhances balance in field operation, ensuring safer and more stable performance even under heavy working conditions.

Equipped with advanced IF (Increased Flexion) technology, this tire represents a key innovation in agricultural efficiency and soil protection. IF technology allows lower inflation pressure, better flotation, and gentler ground contact, effectively reducing soil compaction and supporting healthier crop growth.

Featuring 150% longer lugs and deeper tread than standard R-1 tires, the ATLAPEX 716 R-1W delivers outstanding grip and traction on wet, muddy and soft fields. The extended and deeper tread design also greatly improves wear resistance, providing longer service life and lower long-term costs.


Applications

Supported by a professional team of veteran engineers and sales experts, ATLAPEX has earned global recognition for quality, reliability and innovation. Our products cover OTR tires, industrial solid tires, agricultural tires, truck tires and wheels, widely used in forklifts, aerial work platforms, mining machinery, construction machinery, warehouse equipment and agricultural machinery.

SIZETypeLOAD INDEXSPEED SYMBOLSPatternOD          (MM)SW        (MM)静态半径Static Loaded Radius (mm)滚动周长Rolling Circumference (mm)速度半径指数SRI  (index）RIMINFLATED PRESSURE  (KPA)MAX. LOAD (KG)
280/80R20TL135/131A8/D716956282


DW94002,180
340/80R20TL144/140A8/D7161052343


DW114002,800
400/70R20TL149/149A8/B7161069404


DW134003,250
400/70R20TL165/162A8/B7161069404


DW135005,150
425/75R20TL154/151A8/B7161140420


DW144003,750
540/65R24TL161D7161315550


DW183804,625
VF750/65R26TL172D7161636760


DW25B2406,150
VF620/75R26 CFOTL178D7161605638


DW20B3207,500
600/65R28TL159/159A8/B7161495625


DW20B2404,375
380/85R30(14.9R30)TL140/140A8/B7161415390


W122402,500
IF600/70R30TL165D716







IF900/60R32 CFOTL185A87161893856


DW27B2809,250
VF1050/50R32 CFOTL198D71618631038


DW36B36013,200
420/85R34 (16.9R34)TL147/147A8/B7161578418


DW15L2406,800
IF380/85R34TL154D7161510378


DW123803,750
IF580/80R34TL177D7161795575


DW20B3607,300
520/85R38TL166D716







VF650/85R38TL182D7162071645


DW23B3207,500
710/70R38TL171D71619597168675751925DW23A2406,150
IF800/70R38 CFOTL187/184A8/D7162050790


DW27B2809,750
IF900/60R38 CFOTL190/187A8/B7162035910


DW27B32010,600
480/80R42TL156/156A8/B7161839490


DW16A240400
520/85R42TL169D716







650/65R42TL170/167A8/D7161945657


DW20B3206,000
VF710/70R42TL182D7162088716


DW24B2408,500
VF710/75R42TL184D716







520/85R46TL173/169A8/D7162055516


DW18L3206,500
IF380/95R48TL165D7161950380


DW124405,150
480/80R50TL159D7162055480DW15A

DW15A2409,650
IF380/90R54TL167D7162056388


DW134405,450


Combining a 5% wider section, IF technology, longer lugs and deeper tread, ATLAPEX 716 R-1W Radial Tire is the premium choice for tractors, harvesters, sprayers and all high-efficiency agricultural equipment.

Choose ATLAPEX 716 R-1W – Wider, Stronger, Longer-Lasting for Modern Farming.
